...Seeking Shelter Against the Wind©



An excerpt from Handbook For Boys, by the Boy Scouts of America, June 1953, page 157.



This article can be used by experimental archaeologists, re-enactors or historical trekkers of the late 18th and early 19th centuries, or by anyone who is interested in wilderness survival or camping.  Updated November 2, 2021 – Author’s note.



The lyric, “seeking shelter against the wind”, is from Bob Seger’s song “Against The Wind”1, and while Mr. Seger was talking metaphorically about life and it’s struggles and challenges, it is also an excellent piece of survival advice, as well.  So how do you go about seeking shelter against the wind?  With a windbreak of course!  But is there a science to windbreaks?  Why yes, there is!



Much of what has been written about the science of windbreaks has come from the viewpoint of agricultural scientists, writing about providing shelter for wildlife and livestock, but hey if it works for moose and cows, it will work for you too!



The purpose of a windbreak is, obviously, to break the wind, this reduces the effects of wind chill and at the same time protects you from wind-blown rain, sleet, and snow.  You can either find windbreaks, like large rocks, fallen trees, or thickets and groves of trees, or you can build them yourself from the materials at hand in the wilderness.  There are two types of windbreaks, solid ones like rocks, walls and logs, and permeable ones like groves of trees and thickets, which are also called shelterbelts.




As the wind blows against a solid, straight windbreak, it is either forced around or over it.  When air is forced over a windbreak the air pressure increases on the upwind or windward side and its velocity increases.  On the downwind or leeward side, a slight vacuum is created as the wind crests the top of the obstacle.  This vacuum causes turbulence, which acts to dissipate the wind’s energy and velocity.  The area of wind protection downwind from a solid windbreak is about fifteen times the height of the windbreak.

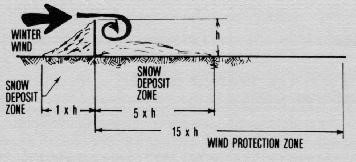

Solid windbreaks, Figure 1, from “Wind And Snow Control Around The Farm”, by Don D. Jones, William H. Friday, and Sherwood S. DeForest.

From “Engineering Practice Planning Guide: Livestock Shelter Structure”, page 6.


During the winter, the wind will drop its snow load in two places.
  On the upwind side of a solid windbreak, snow will drift at a 45o degree angle in front of it.  On the downwind side, the wind no longer has enough energy and velocity to carry the snow, which then drops out and creates a snow drift.  With a solid windbreak, like a fallen log or a large rock, the distance of this drifting is about five times the height of the windbreak and a solid windbreak will also protect you from the wind for about twenty times the height of the windbreak.  The authors of the “Engineering Practice Planning Guide: Livestock Shelter Structure”, note that there should be a mostly snow drift free area, in the lee of the windbreak, out to two times the windbreaks height, with the snow drifting occurring after that out to five times the height of the windbreak2.



Figure 5.1, from “Functioning of a windbreak”, by the Food and Agriculture Organization of the United Nations.



A grove or stand of trees acts as a permeable windbreak and as the wind blows through a grove of trees, with a vegetation density of 50 to 60%3, the wind is both forced over and through the trees.  Just as with a solid windbreak, when the wind is forced over a grove of trees, the air pressure increases on the upwind or windward side and its velocity increases.  On the downwind or leeward side, a slight vacuum is created as the wind crests the grove and this vacuum causes turbulence, which acts to slow the wind.  The area of wind protection, downwind from a grove of trees, is between fifteen to twenty times the height of the trees.  The wind reduction provided by a 32-foot, 10 meter, tall grove of trees can be as much as 70% within the first 100 feet, or approximately 30 meters, dropping to 50% out to 200 feet, or approximately 60 meters, from the lee edge of the grove of trees.



Figure 5, from “Wind And Snow Control Around The Farm”, by Don D. Jones, William H. Friday, and Sherwood S. DeForest.


During the winter, the wind as it blows over a thicket or a grove of trees will drop its snow load in two places.
  On the upwind side of the trees, the snow will drift into the trees and create drifts on the windward side of the stand of trees.  On the downwind, or lee side, the wind is slowed and no longer has the energy and velocity to carry snow and the snow then settles out to create a snow drift.  In the lee of a grove of trees, the distance of this drifting is about five to ten times the height of the grove and this type of windbreak will also protect you from the wind for about fifteen to twenty times the height of the grove.





From “Shelterbelt agriculture uses trees to protect soil and water resources”, by Henry Kock.


During the spring, summer or fall, the best type of windbreak is a thicket or grove of trees, and the best spot for protection from the wind, would be somewhere within five to ten times the trees height, away from the edge of the grove.
  You will also find that during the summer that within this area it will be the cooler than anywhere else.  According to the “Wind And Snow Control Around The Farm”, by Don D. Jones, William H. Friday, and Sherwood S. DeForest, “a dense tree area has a substantial cooling effect. On a hot summer day, there is up to a 10-degree difference in temperature between an open field and a grove of trees. This is more than shade effect. The leaves of one mature tree can evaporate over 200 gallons of water per day, producing evaporative cooling equivalent to an 8-10 room air conditioner!



During the winter, the best spot to be would be about ten times the trees height away from the edge of the grove.  This spot will give you the best protection from the wind and it will also put you beyond the snow drift zone4.




However, in open country, you won’t be able to find a handy thicket or a conveniently placed stand of spruce trees, and you will have to build a windbreak to protect your lean-to or your tent.  When you build a windbreak, its final shape will depend on the materials that you have available build it with.  If you are in a forested area and are using logs, your walls will, of course, be straight, and your windbreak will be “V” shaped.  If you are using snow blocks, are digging through the snow to the ground and piling the dug-up snow to the windward side, or are using piled up rocks, the best shape will be semicircular.  In the Arctic, or during the winter, Alan Innes-Taylor, who wrote the Arctic Survival Guide, suggested the following about windbreaks.



An excerpt from Arctic Survival Guide, by Alan Innes-Taylor, page 59.


Also, the
SAC Land Survival Guide Book, most likely authored by Alan Innes-Taylor, had this to say about windbreaks, “In open country you can build a low snow-block wall not more than four feet away from the tent and semicircular in shape.  Strengthen the windward side by throwing water on it and letting it freeze.



From R. L. Jairell, and R. A. Schmidt, “Snow management and Windbreaks”, page 2.



From “Engineering Practice Planning Guide: Livestock Shelter Structure”, page 4.  Note that in Figure 1a, the width of the shelter is labeled “D” and the Drift-Free area is ¾ of the width at 1-½ times the width from the corner of the shelter.


The authors of the “Engineering Practice Planning Guide: Livestock Shelter Structure”, much like the authors of the
SAC Land Survival Guide Book, thought that the semicircular windbreak was the best shape, as the semicircle protects 27% more area, for the same shelter length, than does the “V”-shape windbreak.  They also wrote that, during the winter, whether you are building a “V”-shape or a semicircle windbreak, if you wished to avoid snow drifts, you should make sure that the shelter width (which is marked as “D” in both illustrations) should be no more than fifteen times the total height your walls.  This way the snow drift free area behind your windbreak, will be no less than ¾ of the shelter’s width.



If the walls of your windbreak are 3 feet, or almost 1 meter high, then the width of the mouth of the semicircle or “V”, should not be more than fifteen times the height, which is equal to 45 feet or almost 14 meters.  During periods of drifting snow, this will give you a drift free area in the lee of the windbreak that is 33 feet, or 10 meters wide



So, the next time you are seeking shelter from the wind, build or find a windbreak and set up camp in its lee.



I hope that you continue to enjoy The Woodsman’s Journal Online and look for me on YouTube at Bandanaman Productions for other related videos, HERE.  Don’t forget to follow me on both The Woodsman’s Journal Online, HERE, and subscribe to BandanaMan Productions on YouTube.  If you have questions, as always, feel free to leave a comment on either site.  I announce new articles on Facebook at Eric Reynolds, on Instagram at bandanamanaproductions, and on VK at Eric Reynolds, so watch for me.



That is all for now, and as always, until next time, Happy Trails!
